Wiring a Siren and Chime to the UniFi Access Control Hub
This article provides instructions on connecting sirens and third-party chimes to UniFi Access Control Hubs, enabling audible alerts for security events and visitor presence. If you've already wired your terminals and are looking for configuration instructions within UniFi Access, click here. For more general information on a hub's input/output terminals, click here.
Connecting Sirens
- The siren sounds when the security devices wired to the hub send a signal.
-
Example 1: When the fire panel detects a fire. See configuring Emergency terminal settings
- Example 2: When the door position sensor (DPS) detects that a door remains open too long or is accessed without authorization. See configuring DPS terminal settings
-
- The siren usually connects to the hub's AUX - SIREN/CHIME relay terminal.
Connecting Chimes
- A third-party chime and a doorbell button wired to the hub provide audible alerts when the button is pressed, notifying authorized personnel of a visitor's presence.
- The chime usually connects to the hub's AUX - SIREN/CHIME relay terminal.

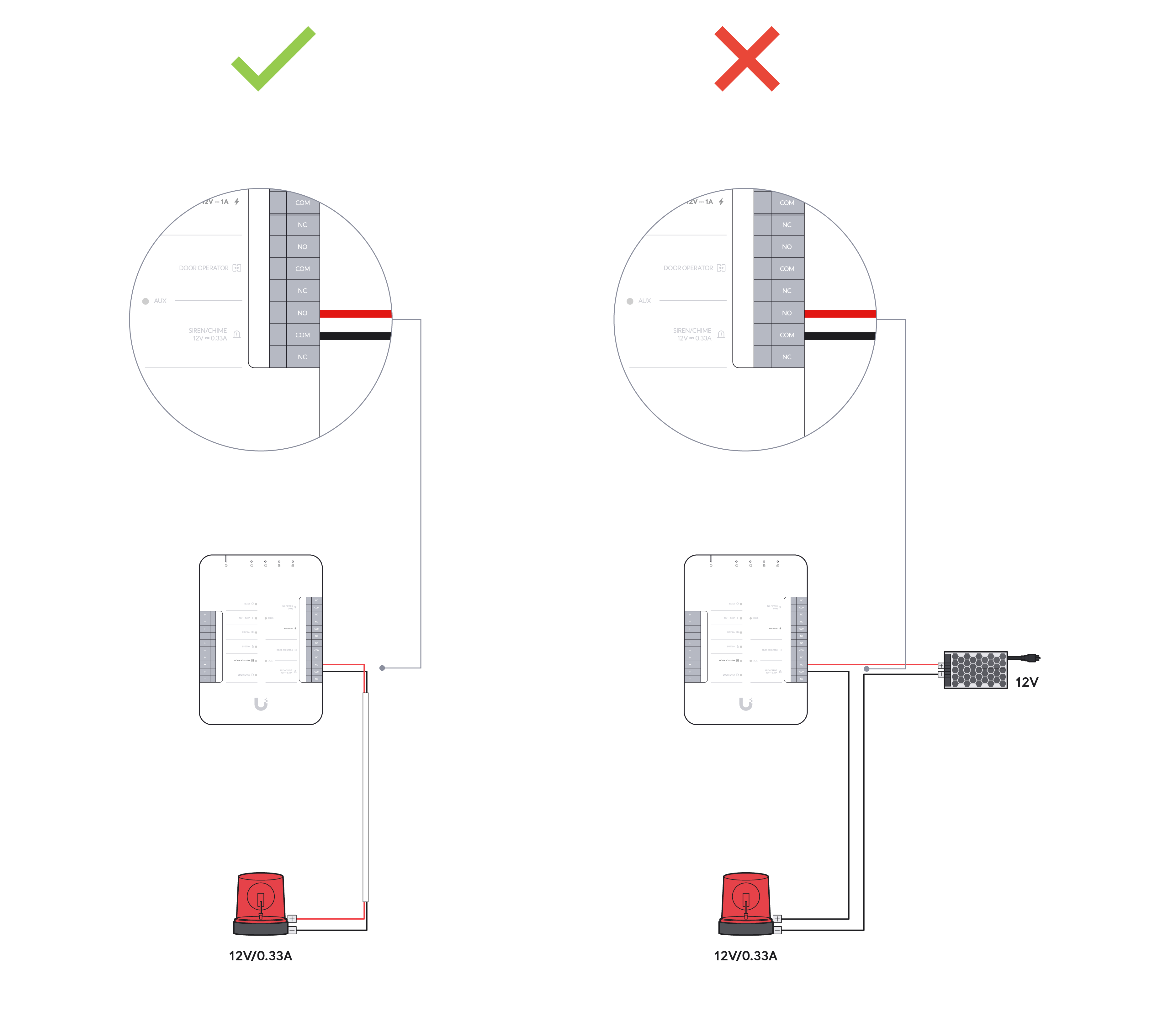

Important Reminder: Do Not Use an External Power Source
The SIREN/CHIME relay terminal provides 12V power and cannot be supplemented with an external power source. Connecting an additional 12V source will damage the hub.
Notes:
- See the hub installation guides for details: Door Hub, Enterprise Access Hub, and Gate Hub.
- To find out the maximum number of door operators supported per hub, click here.
FAQs
Can I use UniFi Chimes instead of third-party chimes?

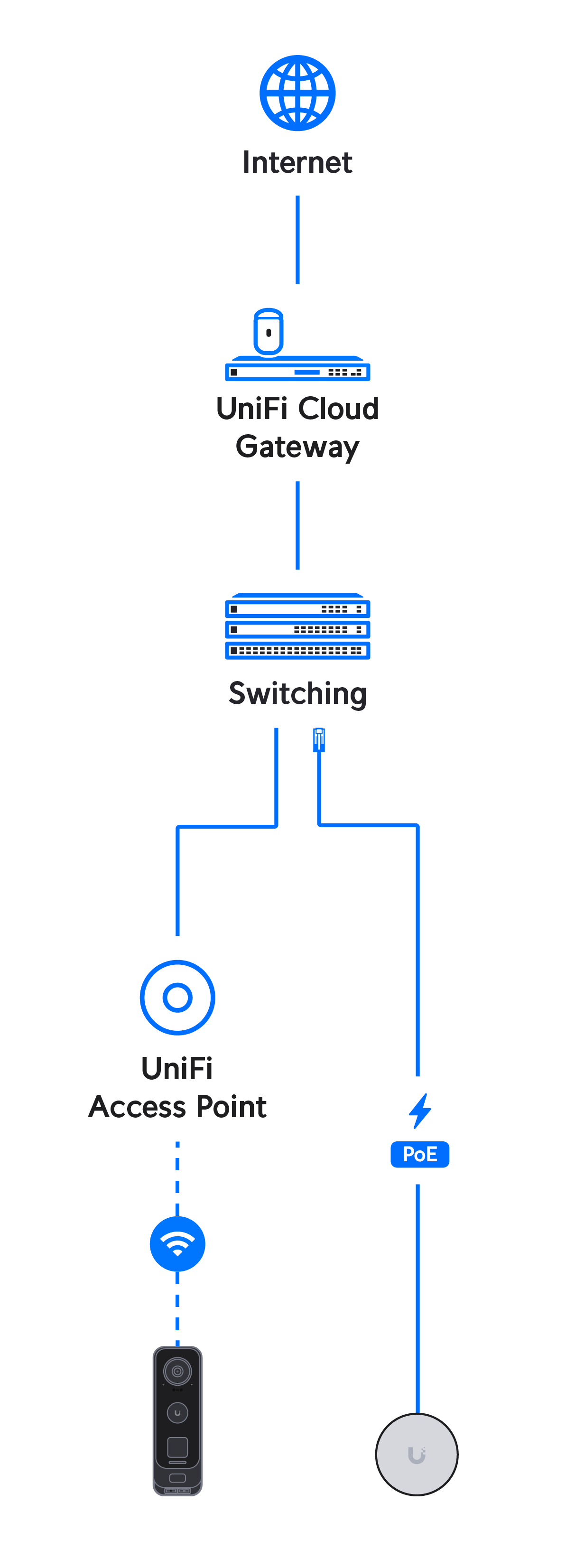

Yes. UniFi offers PoE Smart Chime (UACC-Chime-PoE) and WiFi Smart Chime (UP-Chime) that work seamlessly without a direct connection to the hub.
You can set them as doorbell call receivers for your Intercom or Pro Readers, or pair them with a hub by navigating to Access application > Devices > select a hub > Settings > Terminal Manager > Button (or Exit Request) > Mode > Ring/Trigger Chime > Select UniFi Chimes.
