Configuring UniFi Access Elevator Hub

UniFi Access enhances elevator security and flexibility by enabling controlled floor access based on user permissions or granting full elevator access after authentication. This article explains how to configure the Elevator Hub (UA-Hub-Elevator) for seamless floor access management. For a full overview of all UniFi Access Control Hubs, click here.

Configuring Elevator Hub's Terminal Settings

  1. Navigate to Access application > Dashboard > hover over a UA Hub Elevator > Manage > Settings > Terminal > Terminal Manager.
  2. Configure the Common Settings:
    • Unlock Duration: Specify the time (in seconds) within which a user must select a floor after authentication.
    • Terminal Mode: Select fail-secure or fail-safe.
  3. Configure the Floor Mapping: Assign floor names to relay outputs for easy identification when managing each floor's access policy and unlock schedule.
  4. Set the Emergency Mode to Lockdown or Evacuation.
  5. Set the Elevator Position Encoding to Binary, BCD, or Gray.

Common Use Scenarios

Controlling Access to Specific Floors

This method ensures precise floor access control by restricting users to only the floors they are authorized for. It requires coordination with elevator technicians and specialized equipment. Ideal for residential buildings, offices, and facilities where floor-level access control is required.

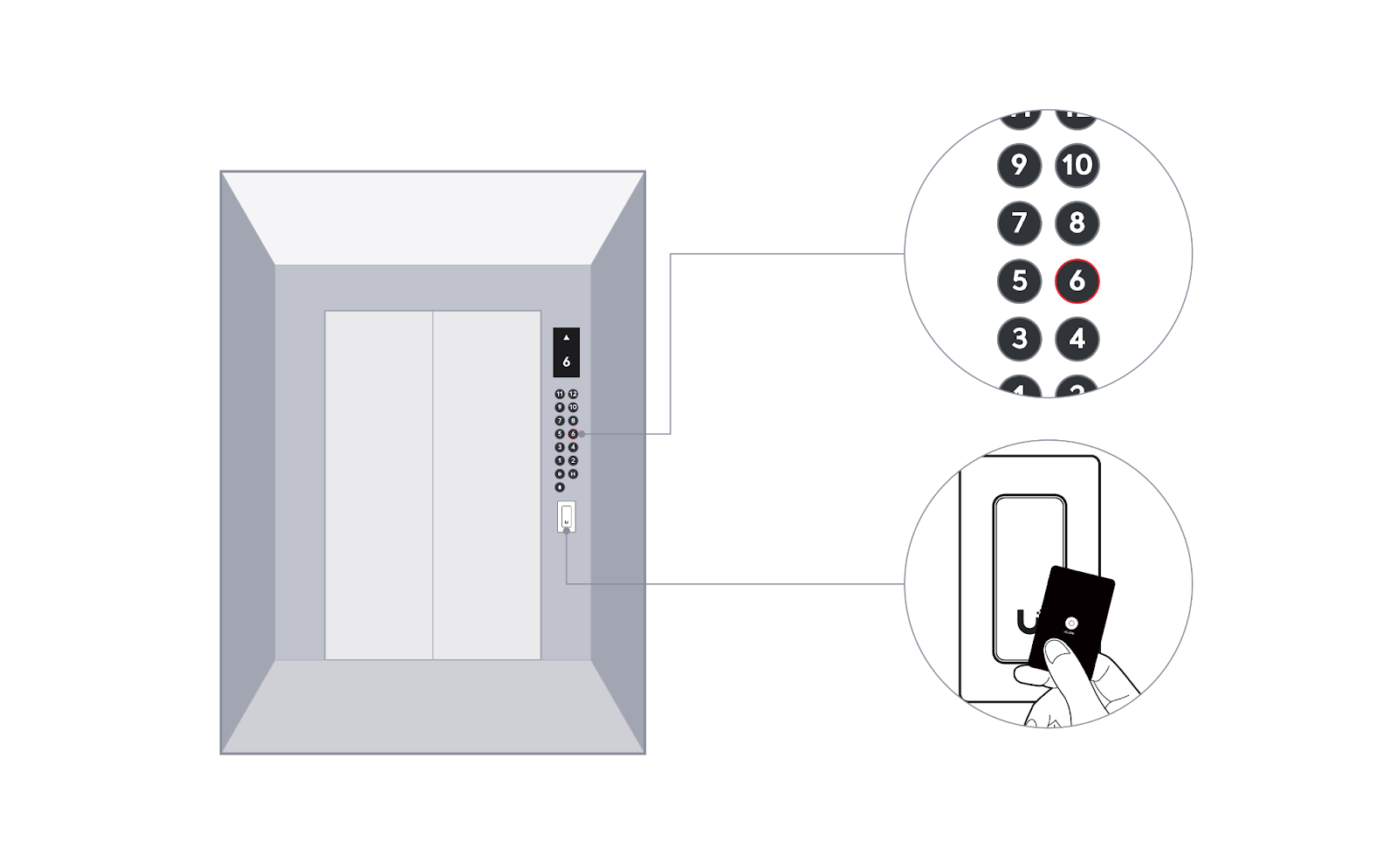

Example Scenario: A user enters the elevator from Floor 1 and authenticates at the reader. Based on their access credentials, they are granted access to Floor 3 and Floor 5 but cannot stop at Floor 2 and Floor 4.

Instructions:

  1. Configure the unlock methods for the reader paired with the Elevator Hub.
  2. Create an access policy with the Locations set to specific elevator floors.
  3. Assign Access permissions, including policies and credentials, to users.

Controlling Full Elevator Access

This method restricts access to the entire elevator system by interrupting the call buttons, ensuring only authenticated users can request elevator service to any floor. Ideal for buildings that do not require floor-specific restrictions but need to control elevator access.

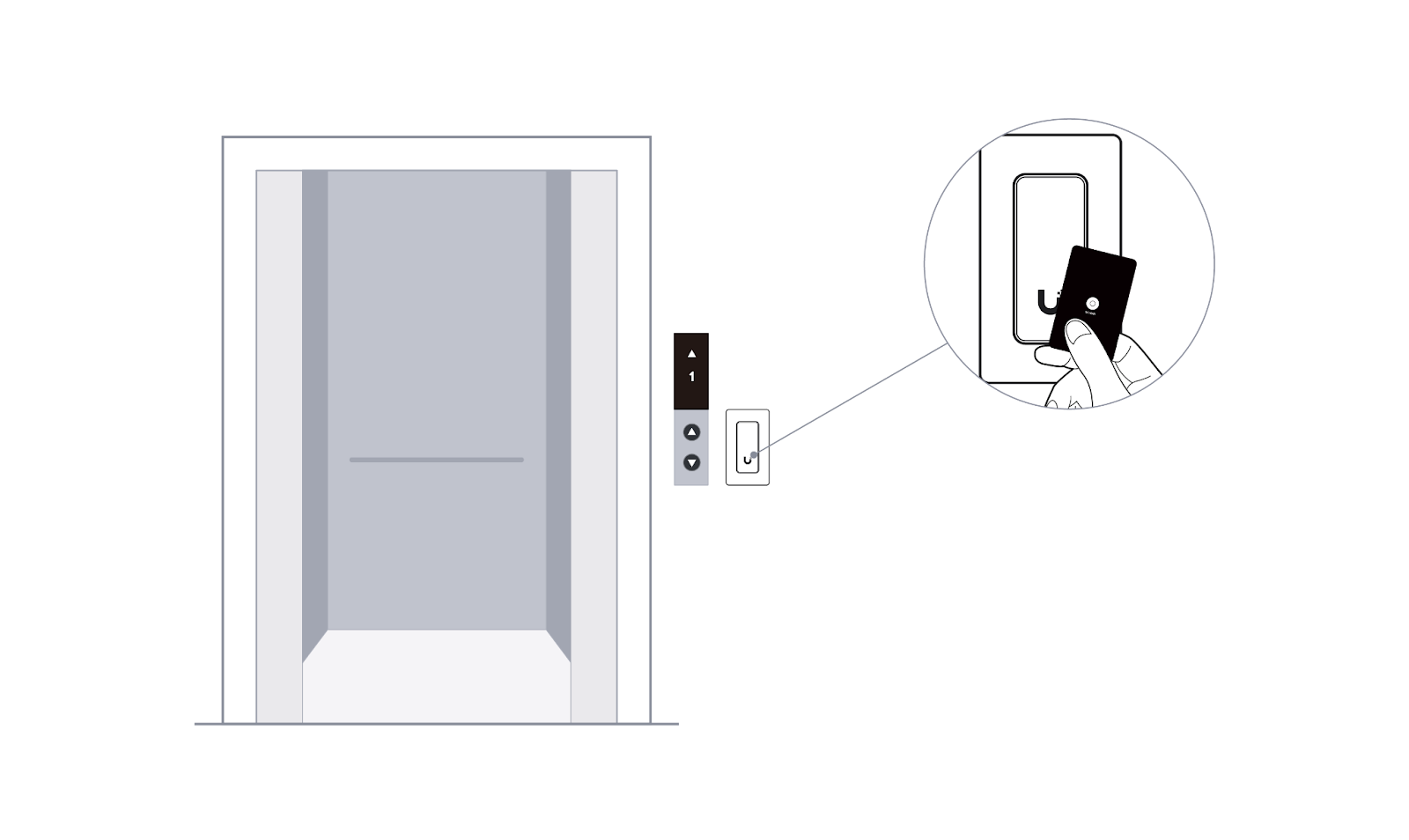

Example Scenario: A user authenticates their identity outside the elevator. Upon verification, they can enter, request elevator service, and select any floor freely.

Instructions:

  1. Configure the unlock methods for the reader paired with the Elevator Hub.
  2. Create an access policy with the Locations set to all elevator floors.
  3. Assign Access permissions, including policies and credentials, to users.

FAQs

Where should I install the Elevator Hub?

The Elevator Hub can be installed either inside the elevator car or in a machine room outside the elevator. See the Installation Guide for details.

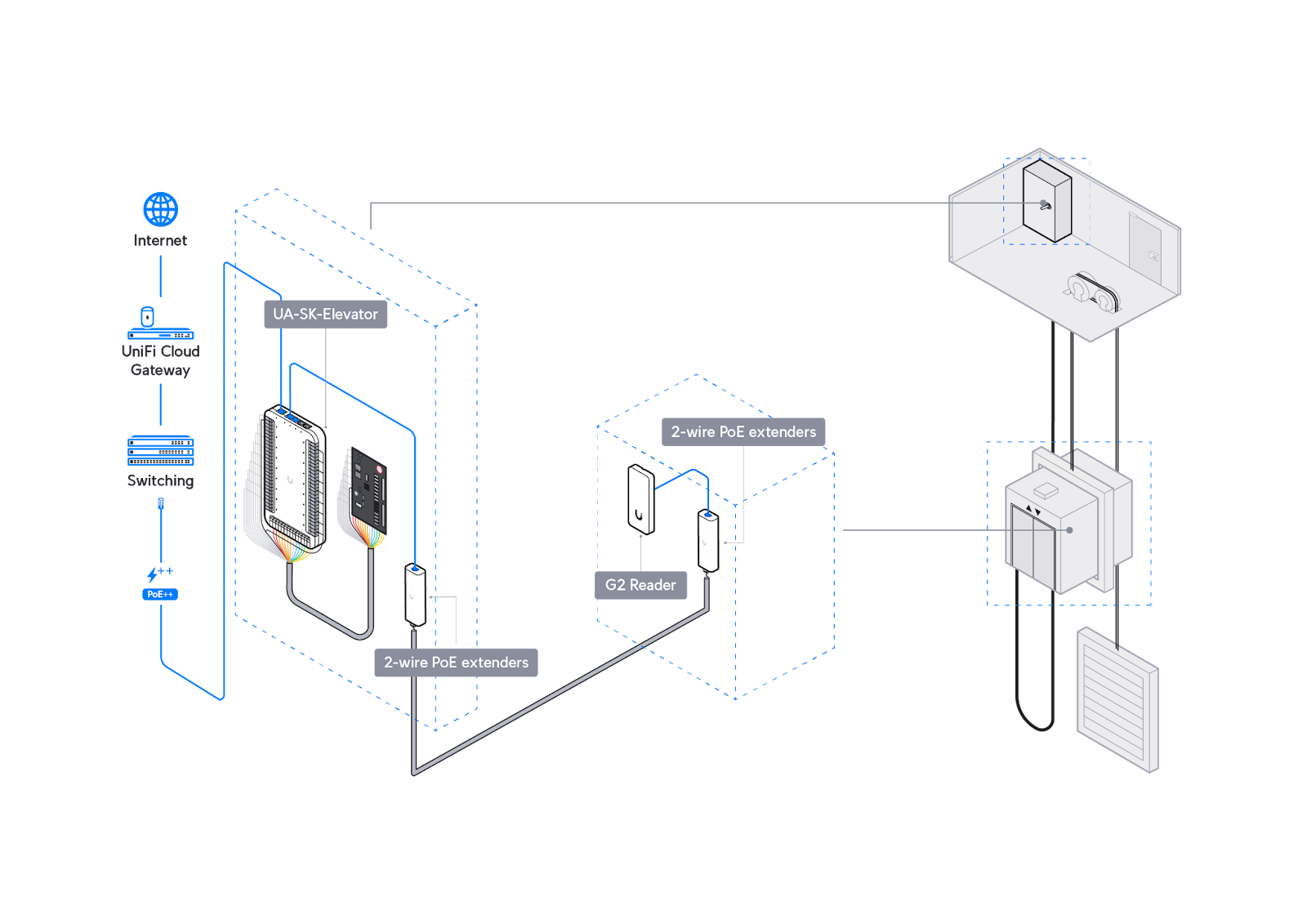

In a Central Machine Room (Recommended)

  • Simplifies maintenance by keeping all hubs in one location

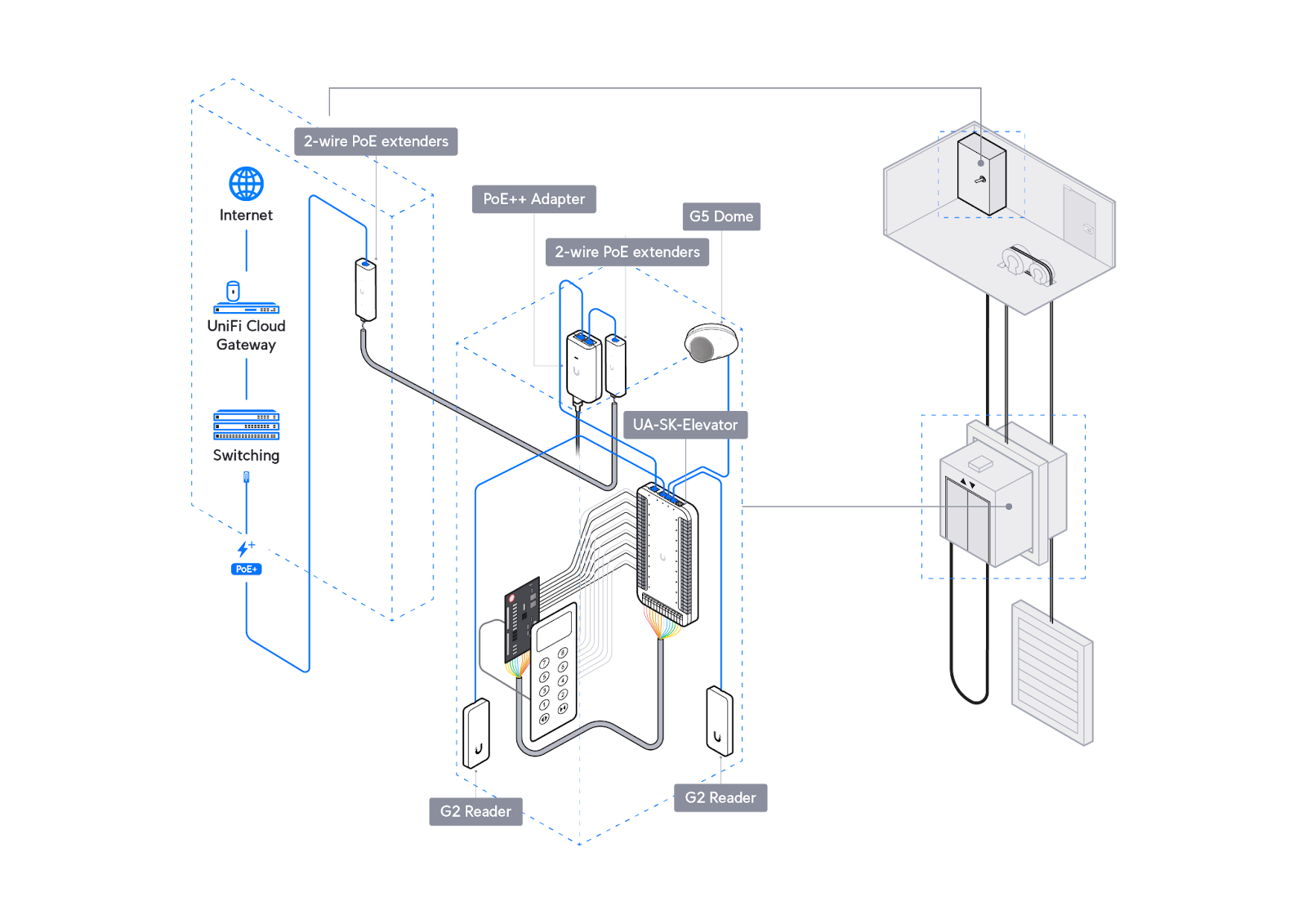

Inside the Elevator Car

  • Maintenance is more difficult since access to the elevator car may be restricted or require special tools.

How can I keep a specific floor always unlocked?

To allow unrestricted access to a specific floor (e.g., the 1st floor, lobby, or public access area) while restricting access to others, you can:

  • Leave the floor unwired to the Elevator Hub, or
  • Set an all-day unlock schedule:
    1. Navigate to Access application > Dashboard > hover over a UA Hub Elevator > Manage > Settings > Unlock Schedule > Custom and set an all-day schedule from Sunday to Saturday.
    2. Set Apply to Floors to the 1st or a specific floor.
    3. Click Apply Changes.

Can other Access Control Hubs manage elevator access?

Yes. The following Access Control Hubs support interrupting elevator call buttons for access control. The setup is similar to door access control, but instead of controlling door locks, it regulates elevator call buttons to ensure that only authenticated users can request elevator service.

How does the Elevator Hub simplify installation?

The Elevator Starter Kit (UA-SK-Elevator) comes with (2) 2-wire PoE extenders to streamline setup. The Elevator Hub uses UACC-Extender-2wire-PoE technology to convert PoE input into two-wire transmission and output it as PoE. This enables users to use existing coaxial or twisted-pair low-voltage cables as PoE power sources for the hub and other PoE devices, eliminating the need for new cable runs.
