Connecting UniFi Speakers to a Single UniFi PowerAmp

The UniFi PowerAmp is engineered to deliver high-fidelity audio across expansive environments. When paired with UniFi speakers, a single PowerAmp can drive up to three pairs (six speakers total).

Before setup:

• Do not connect more than four speakers to the PowerAmp unless you are using UniFi In-Ceiling or In-Wall Speakers.
• Avoid mixing third-party speakers or different models within the same setup.
• Do not wire speakers in series. This will negatively impact performance.
• Ensure all speakers are connected in parallel, as shown in the diagram below.
• Use high-quality 16 AWG (or thicker) oxygen-free copper speaker wire.
• Keep cable lengths consistent to prevent channel imbalance.

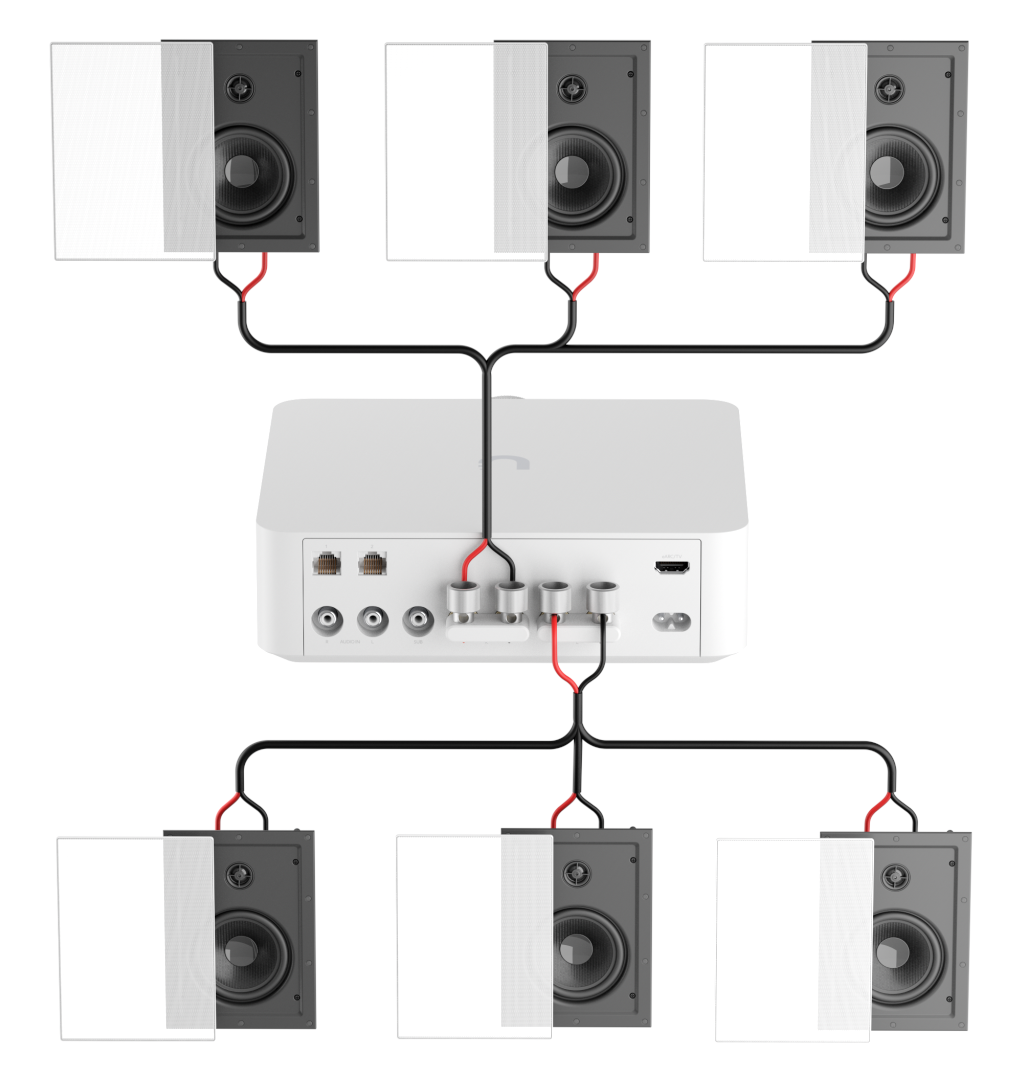

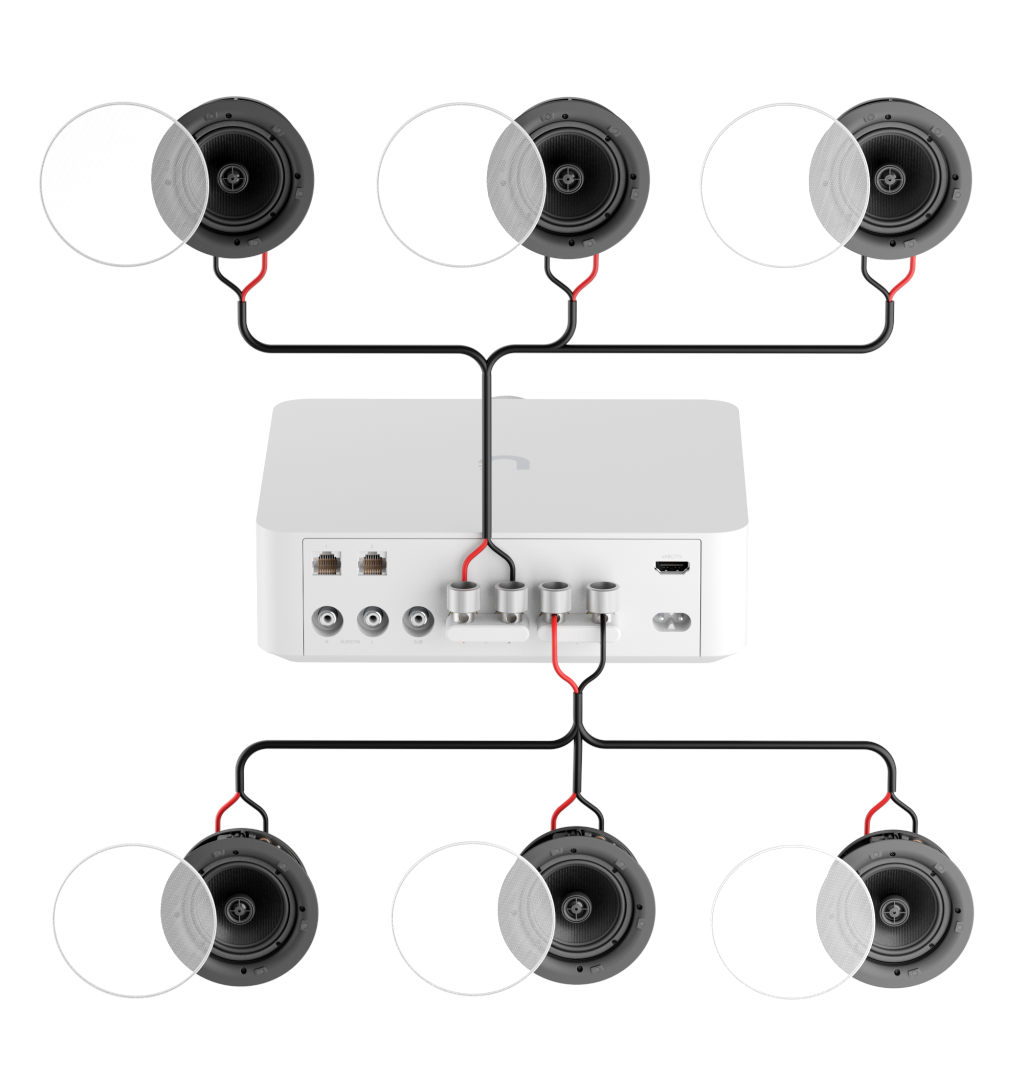

Parallel Wiring Configuration to PowerAmp

• Refer to the PowerAmp QIG for detailed connection instructions.
• To power six speakers, distribute them evenly across both channels:
  • Three speakers connected in parallel to the Left channel
  • Three speakers connected in parallel to the Right channel
