Wiring a Gate and Pedestrian Side Door to the UniFi Access Gate Hub
This article explains how to wire gates and pedestrian side doors to the Gate Hub (UA-Hub-Gate). It covers the four supported gate connection methods based on gate closing actions, and a pedestrian side door connection method. If you've already wired your terminals and are looking for configuration instructions within UniFi Access, click here. For more general information on a hub's input/output terminals, click here.
Notes:
- Before you start, ensure you have read through this article.
- See the Gate Hub Installation Guide for details.

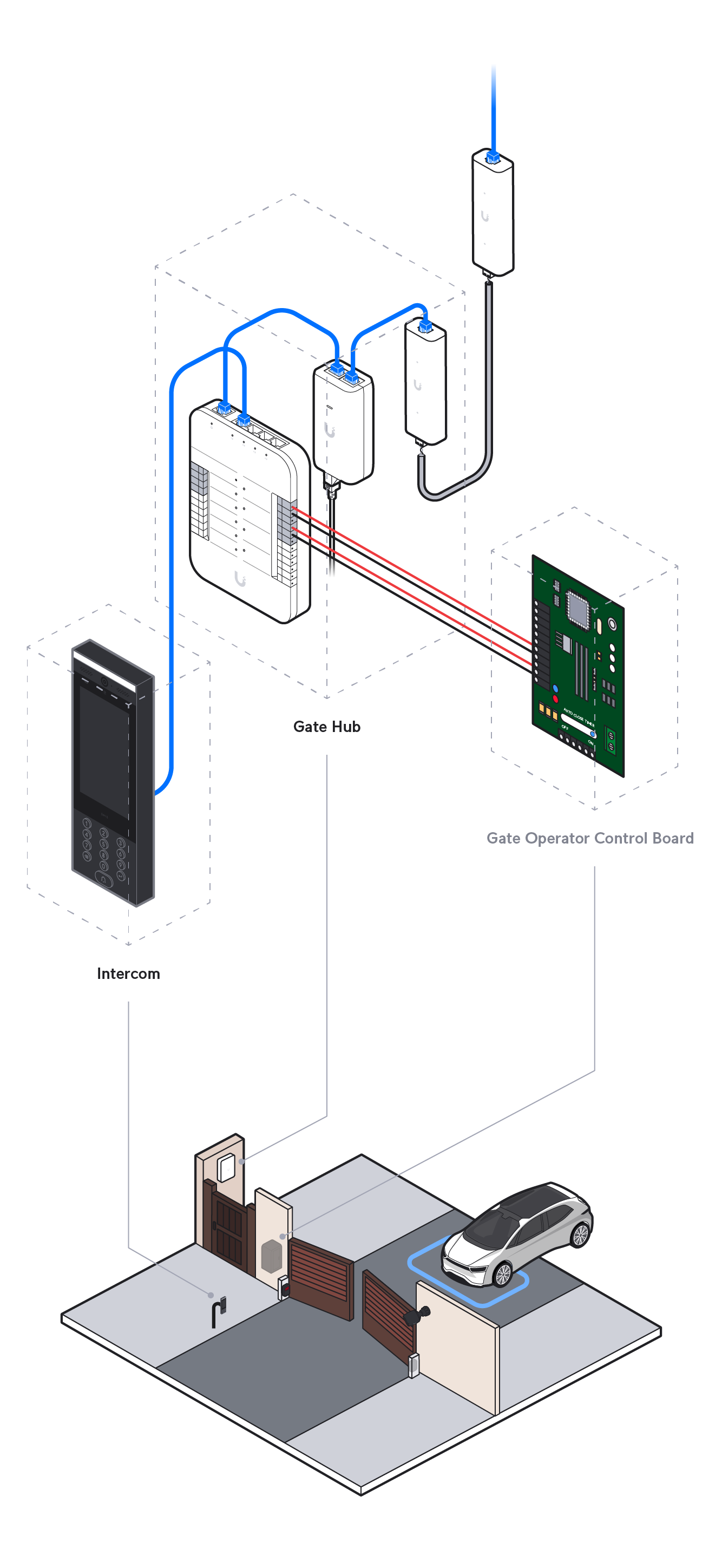

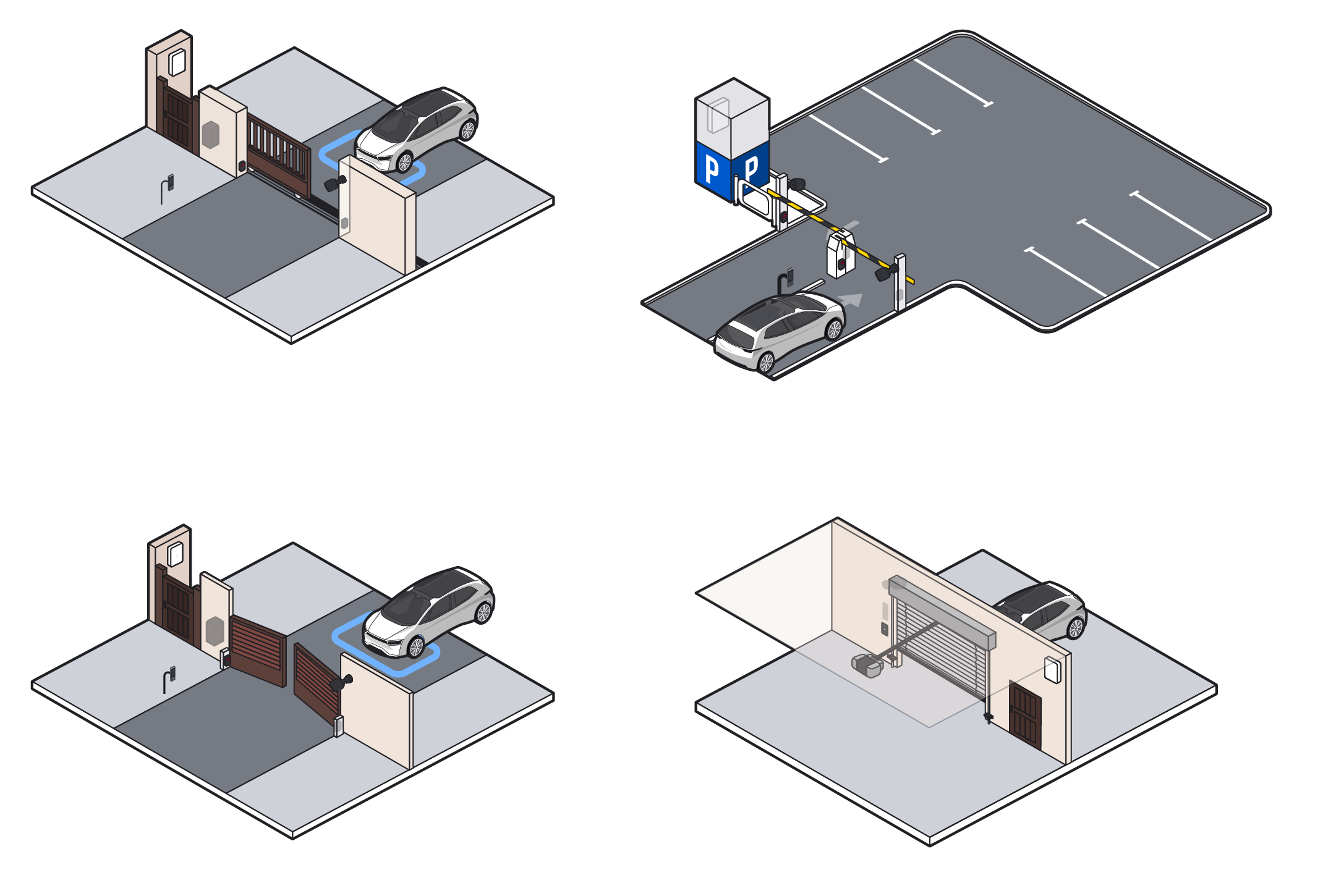

Single Driveway: Automatic Gate Closing via Connected Gate Operator
- Suitable for gate operators that support the Full Open input terminal.
- Requires gate operators that support auto-close timers.
- Learn more about configuring the terminal settings.

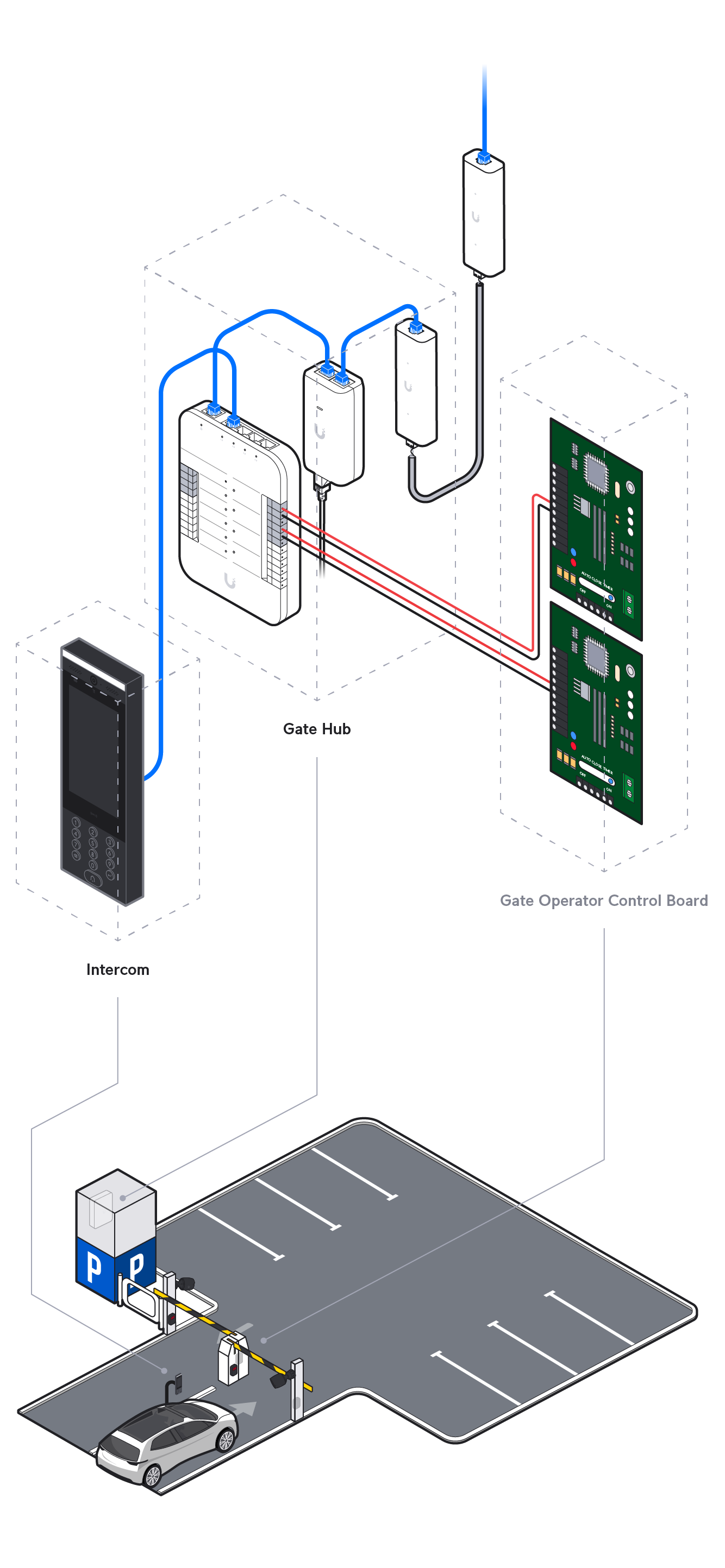

Double Driveway: Automatic Gate Closing via Connected Gate Operator
- Suitable for gate operators that support the Full Open input terminal.
- Requires gate operators that support auto-close timers.
- Requires two gate operators to control both entry and exit.
- Suitable for bi-directional barrier gates for two-way traffic lanes.
- Learn more about configuring the terminal settings.

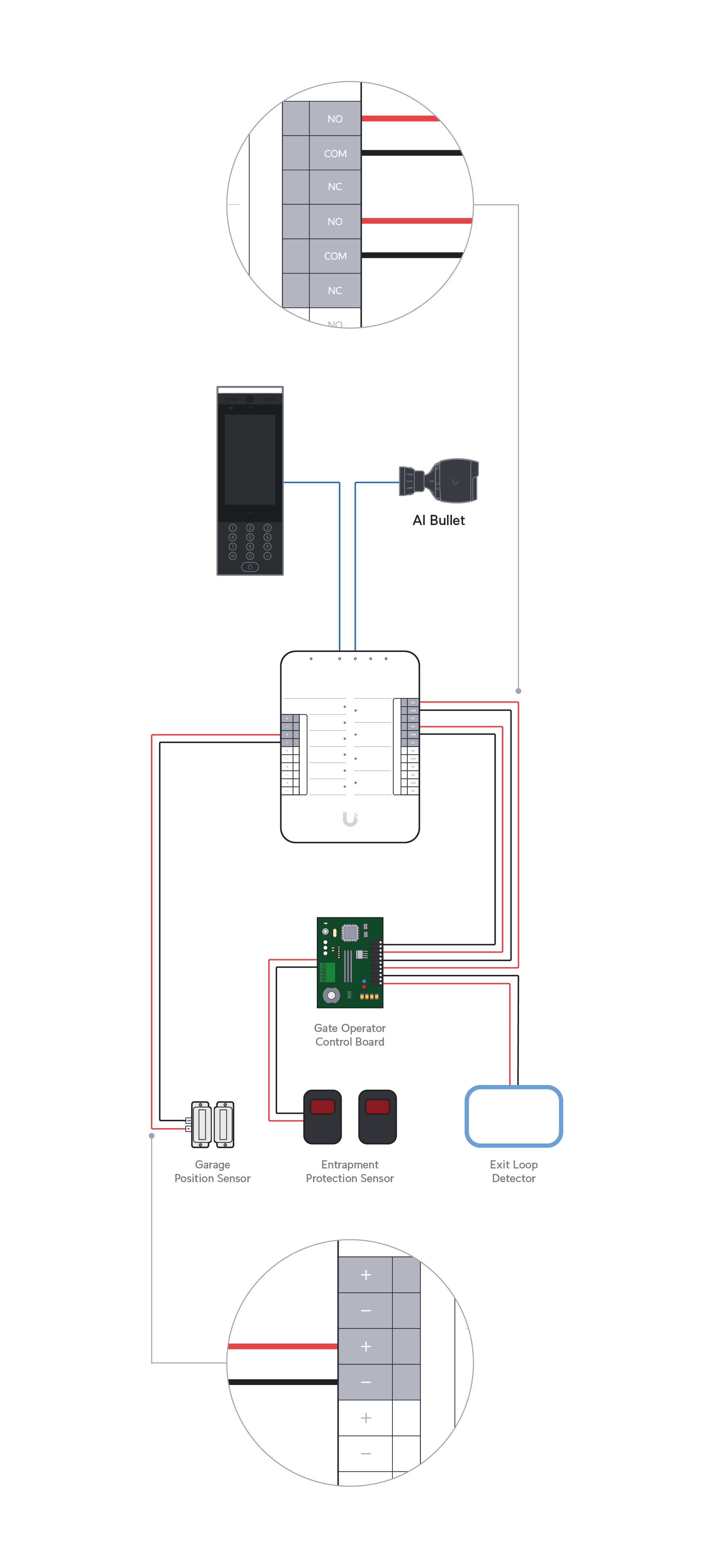

Automatic Gate Closing by Gate Hub's Auto-Close Timer
- Suitable for gate operators that support both Full Open and Full Closed input terminals.
- Suitable for gates where a single driveway is used.
- Learn more about configuring the terminal settings.

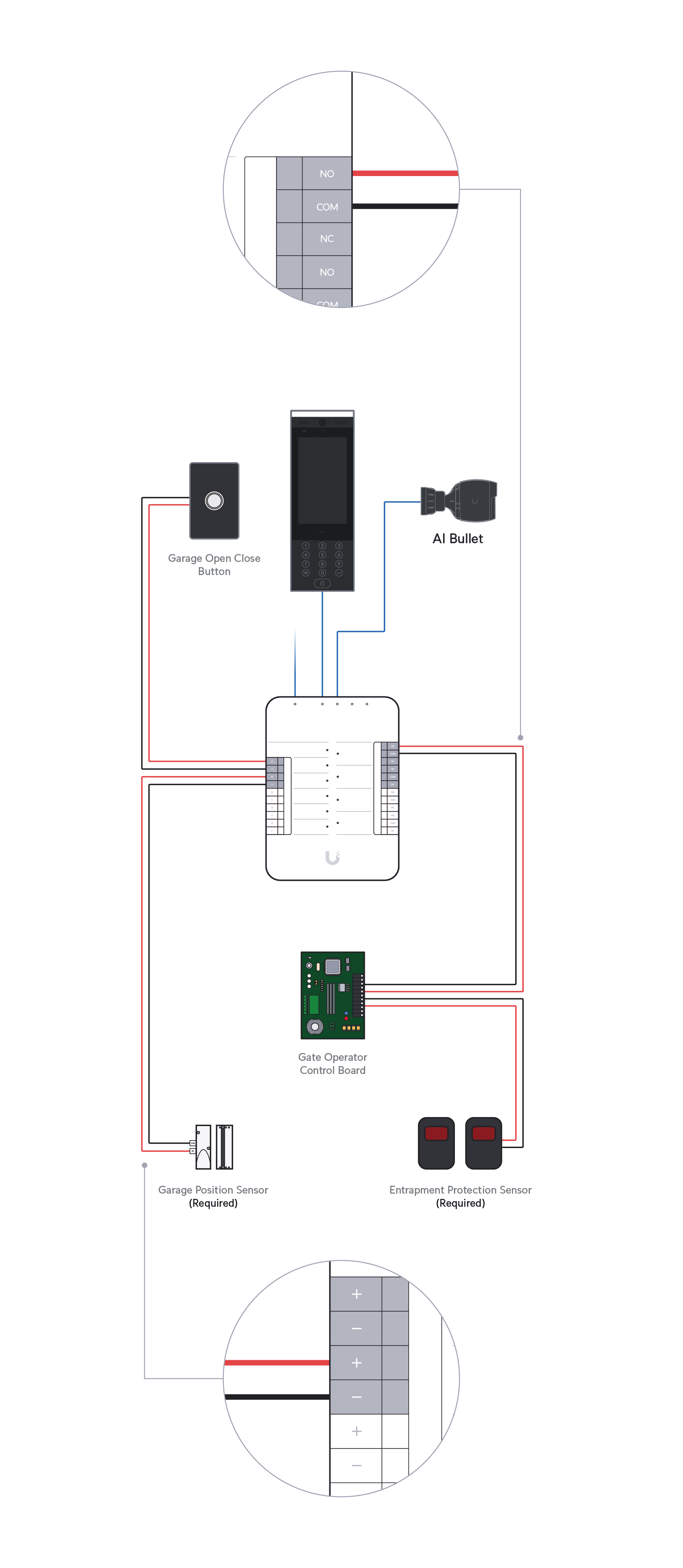

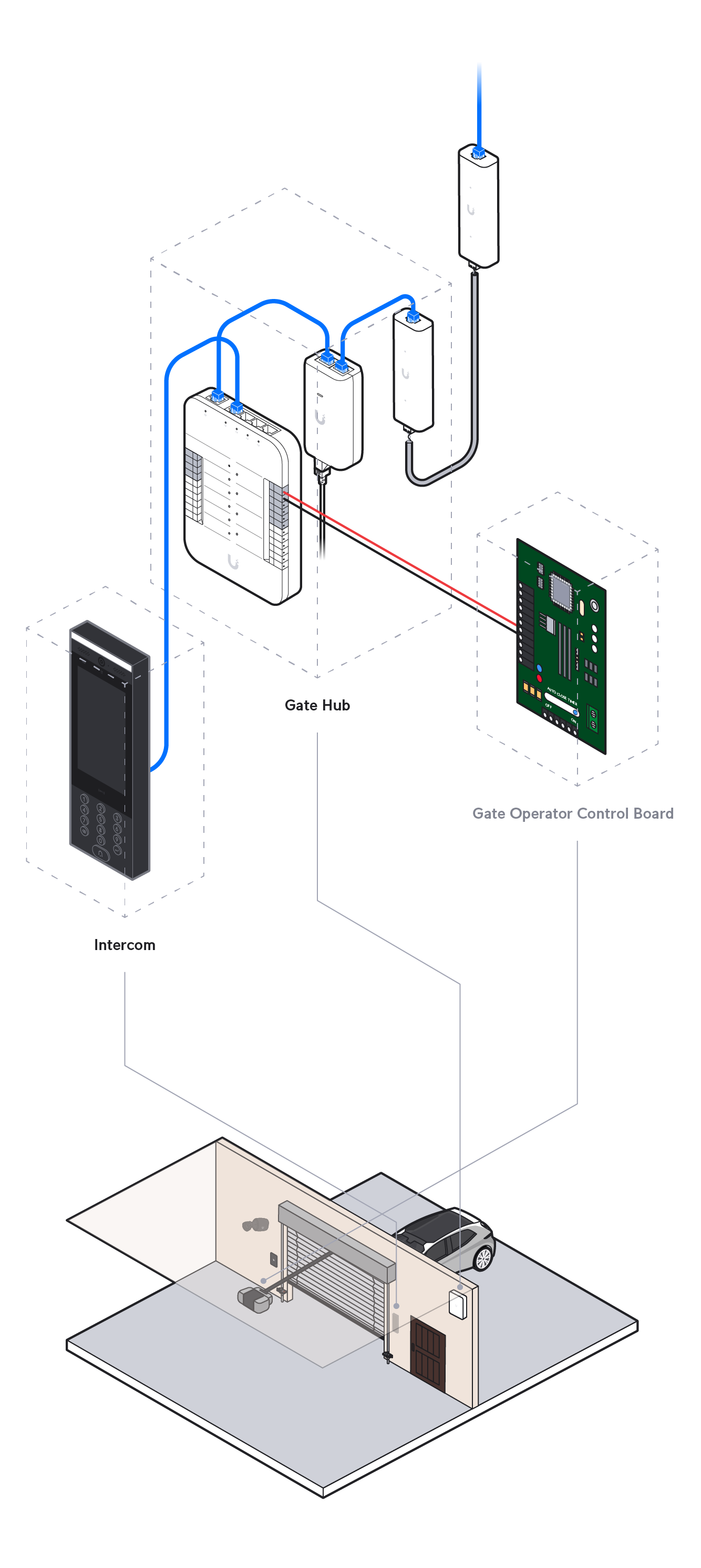

Manual Gate Closing
- Suitable for roll-up gates and garage doors that use a single-button garage opener.
- Manually controlled gate opening/closing via remote control or UniFi Access mobile app / UniFi Identity Endpoint (iOS/Android).
- Learn more about configuring the terminal settings.
Gate behavior when the gate opener is activated:
- If the gate is open, it will close.
- If the gate is closed, it will open.
- If the gate is opening, it will stop.
- If the gate is closing, it will reverse.
- If the gate is stopped mid-way, it will close.
- If the gate is obstructed while closing, it will reverse.
Important: Before enabling manual gate closing, ensure:
- A gate position sensor is installed to monitor the gate's open/closed status.
- An entrapment protection device is connected for safety and License Plate Unlock compatibility.

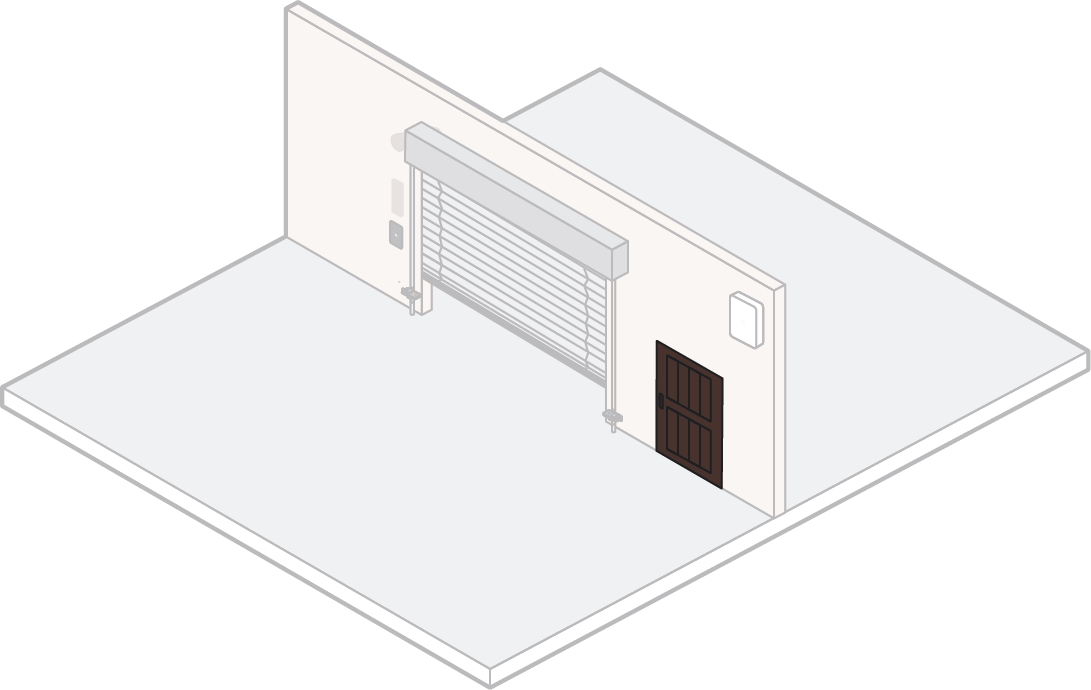

Connecting to a Pedestrian Side Door
- One Gate Hub allows connecting up to one pedestrian side door.
- Learn more about configuring the terminal settings and wiring electric locks.
